GET PROOF WITH Molnar Emission Testing!
BG Australia is proud to have have partnered with Molnar who is providing us professional emission testing equipment.
Molnar is an Australian hoist manufacturer and automotive aftermarket equipment supplier. The Molnar SGA400 emission tester provides us with quick and easy emissions information highlighting the condition of each vehicles emission system.
The Molnar testing equipment is equipped with SST100 Opacimeter which is a diesel smoke analyser. The presence of smoke in the diesel engine exhaust indicates poor combustion resulting in some malfunction, maladjustment or non-proper fuel use. For this reason, the measurement of smoke emission is a widely agreed indication that there is a technical concern with an engine.
SGA400 emission tester
+ DESCRIPTION
The Molnar SGA400 emission tester is a 4 gas analyser used to measure the exhaust gas emissions from petrol and LPG vehicles and motorcycles.
It is designed for accurate measurements on both modern cars with catalytic converters as well as on older vehicles with higher exhaust emissions.
SGA400 calculates and displays lambda value. The measurements are easy to read even from long distances.
The SGA400 emission tester meets the OIML class 00 certifications and is MID approved.
+ KEY FEATURES
- Thermal printer
- 7m hose
- Stainless steel probe
- Power cable with battery clamps
- Power supply with mains cable
- Aqua Sense protects the optical bench from being damaged by liquids
- Fast warm up time of less than 10 seconds and full accuracy reaches within 2 minutes
- Optical IR bench – Solid state detector, OIML class 00 with latest technologies and highest accuracy available
- Firmware upgrades can be downloaded via USB
- Optional extras: OBD scan, hand terminal with LCD display, Mobile stand, RPM sensor, oil temperature sensor
- 1 year warranty
+ SPECIFICATIONS
- Measurable Gases: CO, HC, CO², O², (NOx as option)
- Accuracy Class: 00 (OIML)
- Ready to Measure: Less than 1 minute
- Flow: Minimum 5,5 l/min,
- Nominal 6,5 l/min
- Measurement Range / Measured value resolution: CO 0-10%/0,01
- HC 0-15000 ppm/1
- CO² 0-20%/0,01
- O² 0-25%/0,01
- On-board voltage: 10-30 VDC (with transformer)
- Power Supply: 100-240 VAC, 50-60HZ
- Dimensions (LxBxH): 400mm x 240mm x 260mm
- Weight: 5.3kg
+ DOWNLOADS

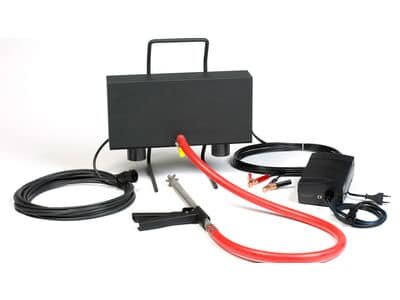

SST100 – Diesel Smoke Analyser
+ DESCRIPTION
The SST100 Opacimeter is a diesel smoke analyser designed according to ISO 11614 and 72/306/EEC.
The SST100 smoke analyser is light, small, fast and operates on low voltage and with low power consumption.
The embedded software has a protocol with many features that makes it easy to adapt to any host system eg. PC or SGA400 emission tester.
+ KEY FEATURES
- Light, small in size, fast
- Operates on low voltage
- Low Power consumption
- Warm up time of less than 3 minutes
- Optional Bluetooth module makes the SST 100 communication wireless
- Easy to adapt to any host system
+ SPECIFICATIONS
- Measurement Range Turbidity: 0-99,9% Range / 0,1% Resolution
- Absorption Coefficient: 0-16.06m-1 Range / 0,01m-1 Resolution
- Optical Path Length: 215mm single path, corrected to 430mm according to ISO11614
- Warm Up Time: 3 minutes
- Detector / Light Source: Silicone photo diode / Green LED 565nm
- On-board voltage: 10-30 VDC (with transformer)
- Power Supply: 10-30 VDC(6A) – 230 VAC
- Dimensions (WxHxD): 420mm x 190mm x 350mm
- Weight: 5.5kg
